The most important feature of Solo II is to show your lap times.
When Solo 2 DL is powered up, it automatically recognizes the start/finish line coordinates of the track you are visiting based on the huge list of World tracks stored on Solo’s internal memory, this allows very precise lap times with very little effort.

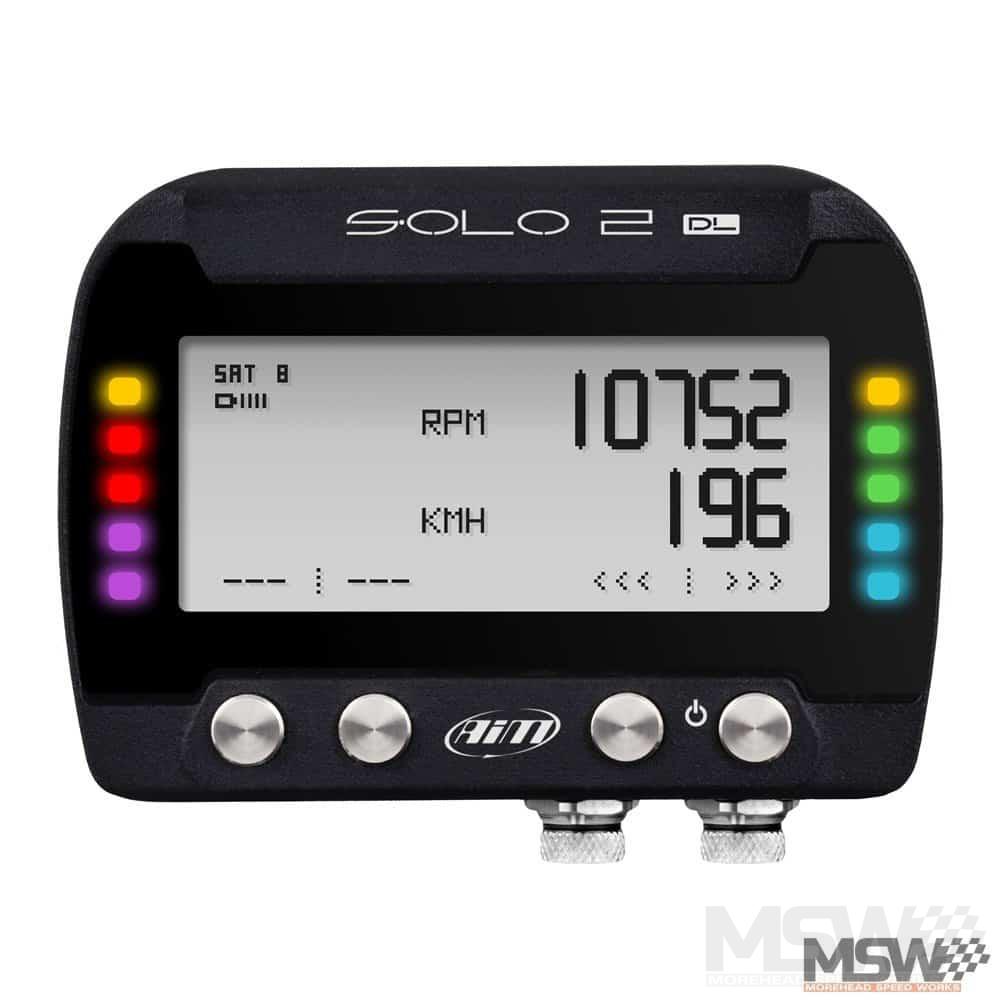

Solo 2 DL, the Solo with ECU connection
More than 1,000 protocols for 1,000+ ECU in the database, for easily connect your Solo 2 DL to your Engine Control Unit and get a lot of information with just one cable.
In case your ECU protocol is not in the database, no problem: an ECU Driver Builder is always available in the Race Studio 3 configuration software, and you will be able to create your protocol by yourself.
Coil RPM input
Solo 2 DL now features a digital input allowing to log RPM either from square wave signals (8-50 V each signal) or pulse signals (150-450 V ignition coil trigger – primary circuit).
The screen can be backlited in one of the seven available colors:
Solo 2 DL is fully configurable and includes different lap time display modes:
- Rolling lap time
- Static lap time
- Predictive lap time, calculated during the current lap
- Predictive lap time, calculated as difference between the above and the best lap
- Best lap
SmartyCam HD connection: The perfect connection: get all the data from your ECU, merge them with the GPS information and transmit everything to the SmartyCam HD, that will show them in graphical overlay in the video.
Wi-Fi connection: easy, fast, without connectors or cables: the best way to configure your Solo 2 DL, to manage the track database, to download the data to your PC.
iPhone connection: Use your iPhone for a quick and comfortable data analysis, for managing the track database.
