GSR M52TU / M54 Upgraded Oil Pump

The GSR M52TU/M54 Four Bolt Oil Pump Shaft is the ultimate piece of engine insurance for your non-M E46, Z3/Z4 or any other M52TU/M54-powered BMW.

Whether your car is a race car, dual-duty street/track car, or you simply enjoy spirited high-performance driving, your stock oil pump shaft is at risk for failure.The factory oil pump nut can back off, and the shaft has a known history of breaking at high RPM. Either of of these failures would quickly lead to oil starvation, leaving your engine as nothing but a very large and expensive multi-piece paperweight.

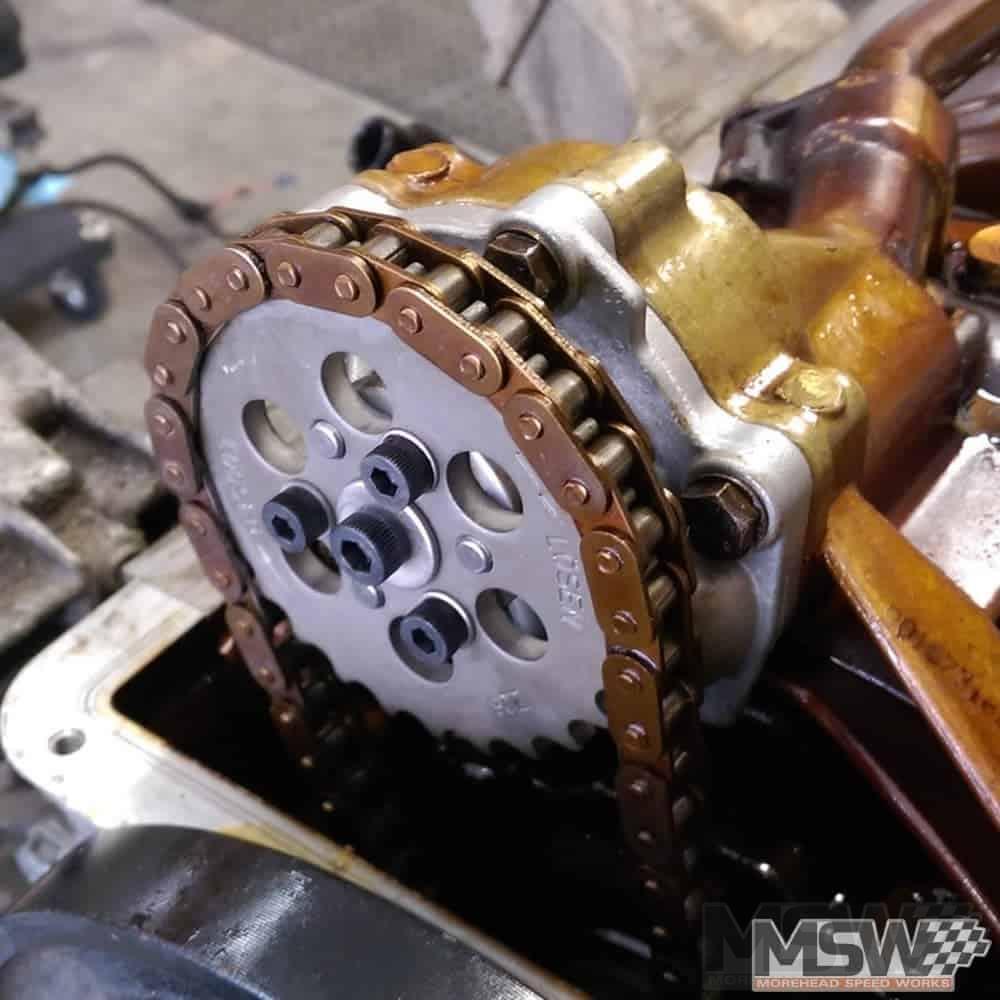

GSR’s M52TU/M54 Four Bolt Oil Pump Shaft replaces the failure-prone single-nut OEM sprocket retaining system on the M52TU/M54 engine. The replacement shaft is precision ground, machined, and hardened for superior wear characteristics and resistance to shear failure. The four-bolt mounting system prevents the pump nut from becoming loose and backing off. This package is far superior to welded or safety-wired versions of stock parts, or a single-fastener replacement.Kit includes new pump shaft, sprocket, and inner rotor. Fully assembled – no pressing required.

Note: M52TU engines are updated, dual VANOS equipped M52 units built in 1998-2000 and were only available in the E46 & Z3 chassis. These pump upgrades are compatible with OE part number 11 41 7 501 568. This upgrade is NOT compatible with the M52 engines from an E36 chassis.

$300 core charge is automatically added and will be refunded upon receipt of your rebuild-able core. Core MUST be received within two weeks of delivery of replacement unit. You may send your old cap before ordering to avoid the core charge.Core return instructions:  We only need the oil pump cap (click for photo), which is the cast aluminum piece between the sprocket and inner rotor.  Please do not send your entire pump.

Ship to:
Morehead Speed Works
ATTN: GSR Pump – Order #_____
347 Riverchase Way
Lexington, SC 29072
