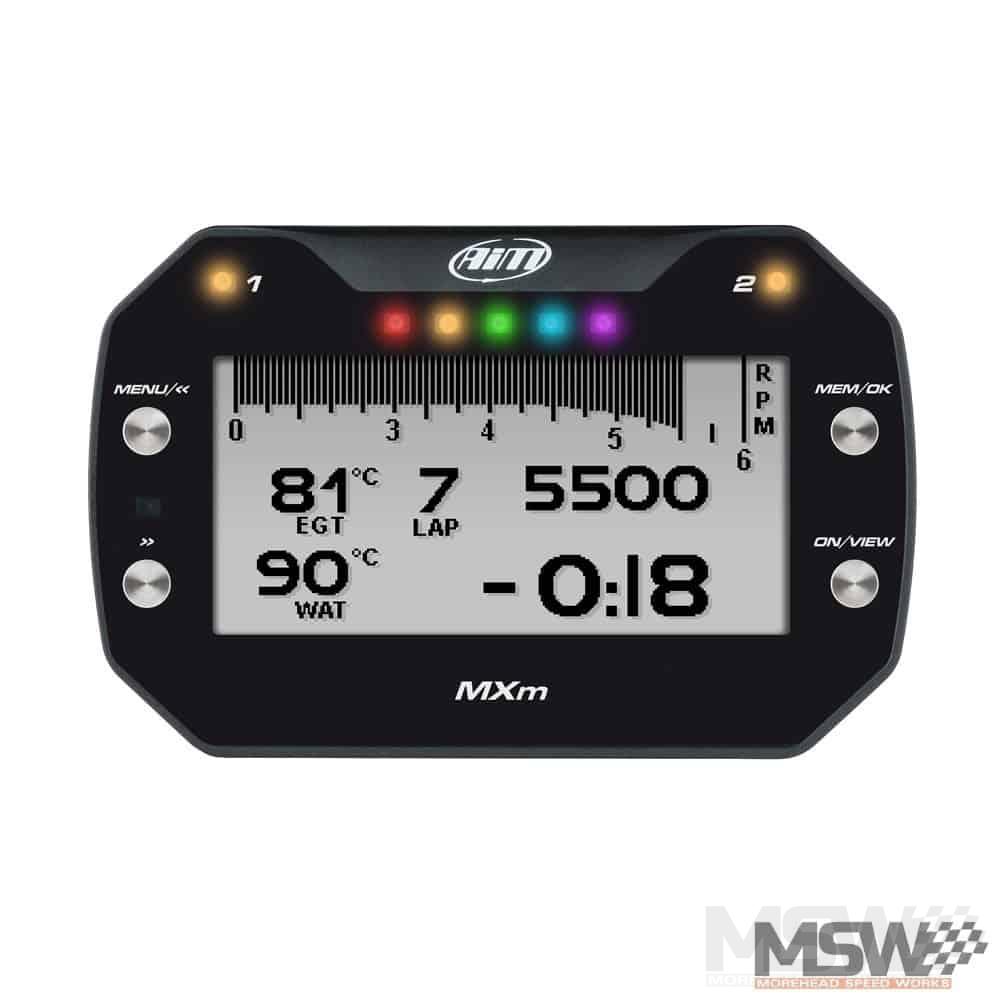

AiM MXm Compact Logger
MXm is the dash logger which provides all the info needed by racers: it samples and shows key info like speed, laptimes, RPM, gears, it has a 9 axis inertial platform, multiple math channels and much more.
The MXm’s strengths are its compactness, which makes it perfect to be fit into any kind of car and bike, and its plug-and-play usage: complete but simple, MXm is the perfect device for both Pro and amateur racers. The MXm fills in the product line nicely between the more portable Solo2 DL and the larger MXL2.
A wide range of data sources
MXm samples data coming from your ECU, the internal GPS, the inertial platform (accelerometer, gyro and magnetometer), 4 fully configurable analog inputs, 3 digital inputs (2 speed inputs + 1 coil RPM input) and predefined math channels.
For the most demanding, the system can be connected to the Lambda controller and to the SmartyCam HD in order to obtain the full AiM experience.
Integrated shift lights and alarms
MXm features a 5 LED shift light array. Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your liking, and for each unique gear when required. MXm also features two fully configurable RGB alarm LEDs: you can choose the conditions which turn them on/off, their color, select a solid alarm – or flashing one -and the flashing frequency.
Two power outputs
MXm features two power outputs that can drain up to 15 A each. The two power outputs can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Sharp Liquid Crystal
MXm features a high contrast LCD display, with an outstanding black to white ratio. The wide 268×128 pixels graphical LCD offers great flexibility in information display and alerts. An ambient light sensor keeps the backlight at optimum brightness levels.
Data recall on screen
At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures.
Choose your own data layout
You can organize this huge quantity of data defining your custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure unit.
Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection: no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 meters away.
Mxm, USB Cable, 37 Pin Standard Harness, Power Cable, and Race Studio 3 Software.

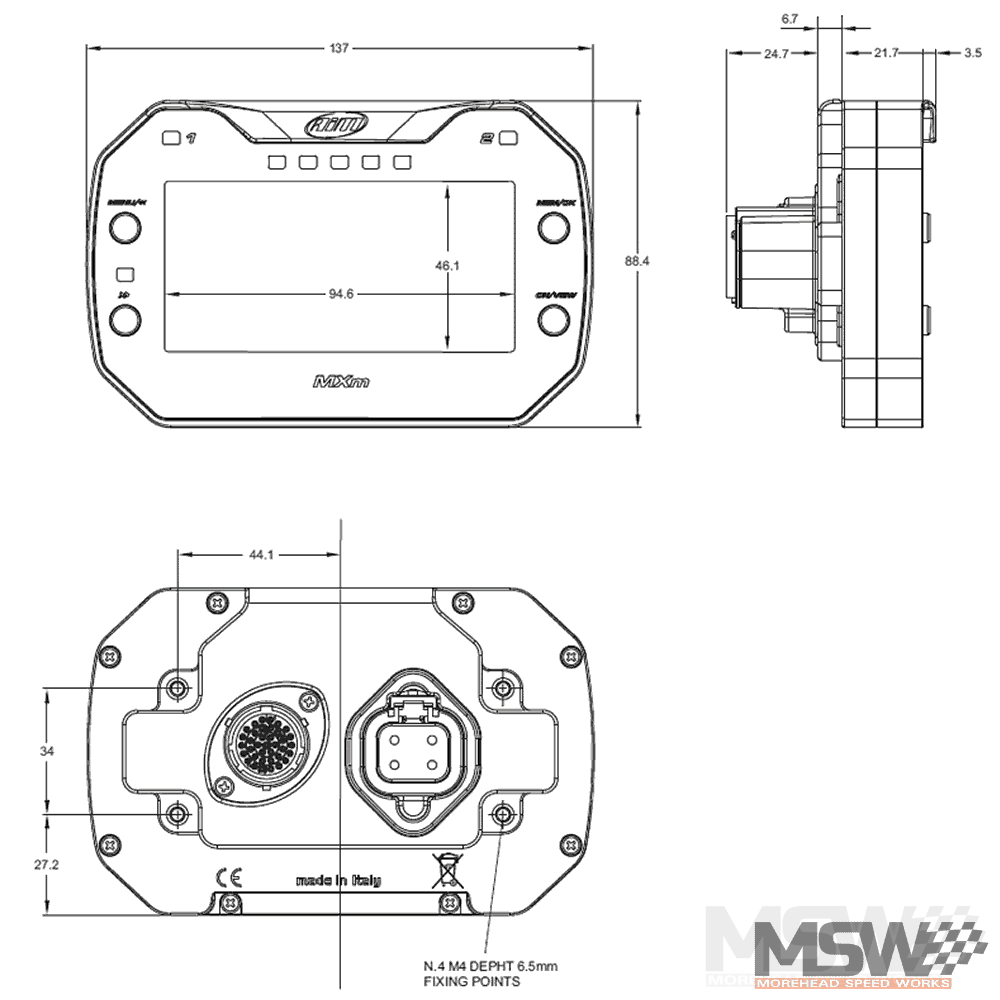

|Dimensions||12 × 8 × 4 in|
