MSW E46 Power Steering Reservoir Relocation Bracket
$44.99
This Power Steering Relocation Bracket makes for easy and secure mounting of your OE style reservoir in a more convenient location.
In Stock! - Ships in 1-3 Business Days

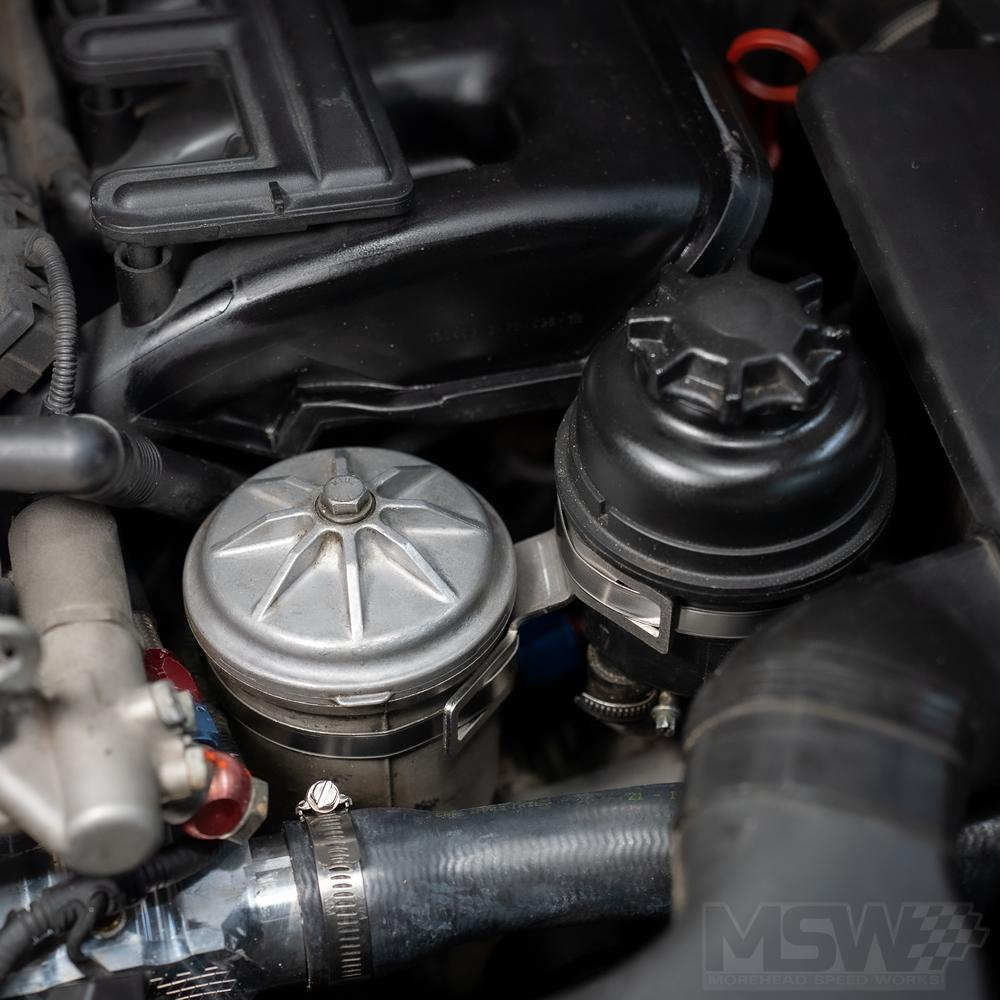

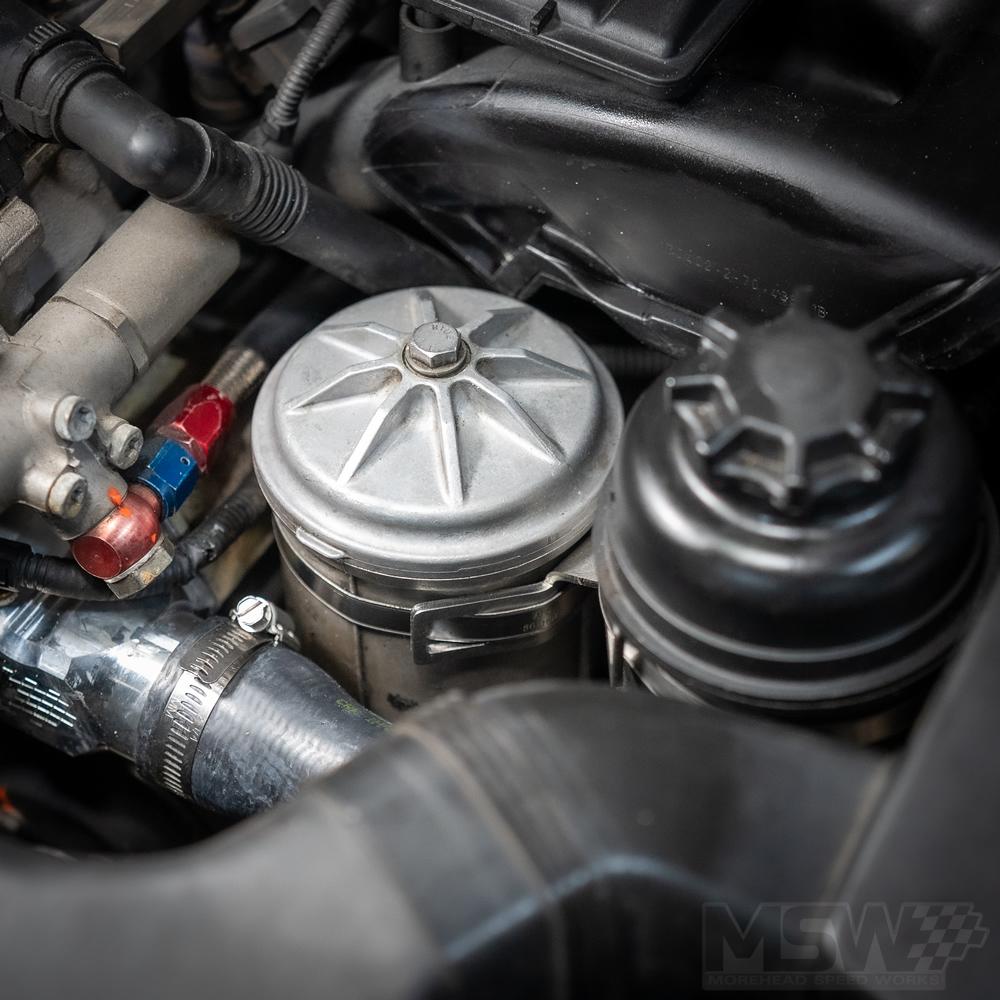

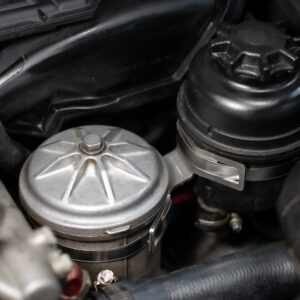

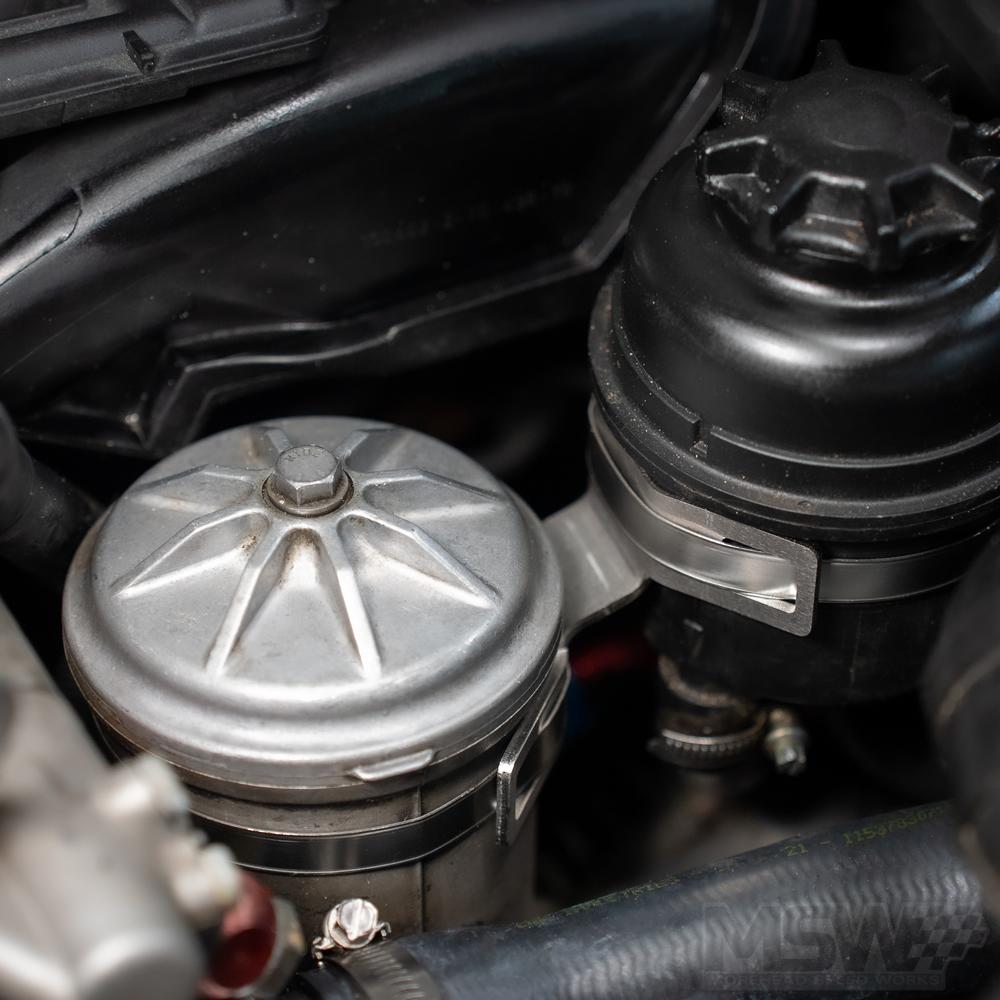

The MSW Power Steering Reservoir Relocation Kit allows for placement of the OE plastic reservoir between the oil filter housing and the airbox on both M3 and non-M models when equipped with the S54/M52/S50 style oil filter housing.
This kit has been test fit on Non-M and M3 E46 models when equipped with the S54/S50 oil filter housing. It places the power steering reservoir close to the same location as found on the M54 models, allowing for easy access to checking and refilling fluid levels.
No longer do you have to remove intake hoses or more to just check your steering fluid level on your M3 (or other application where the reservoir was mounted to the left engine mount arm.)
Fitment: We have test fit this bracket on 330i/330Ci models, as well as M3s with the stock airbox. It may fit other models, such as the Z3, Z4, or E36.

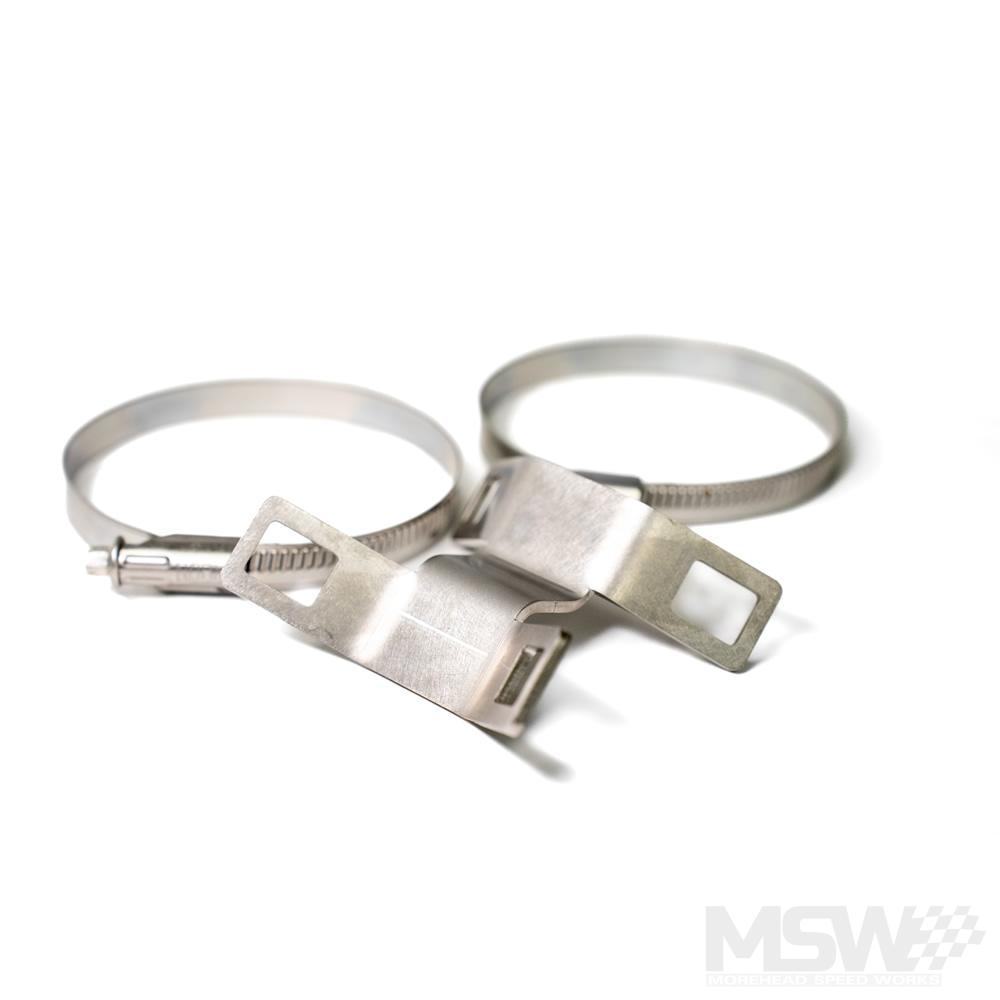

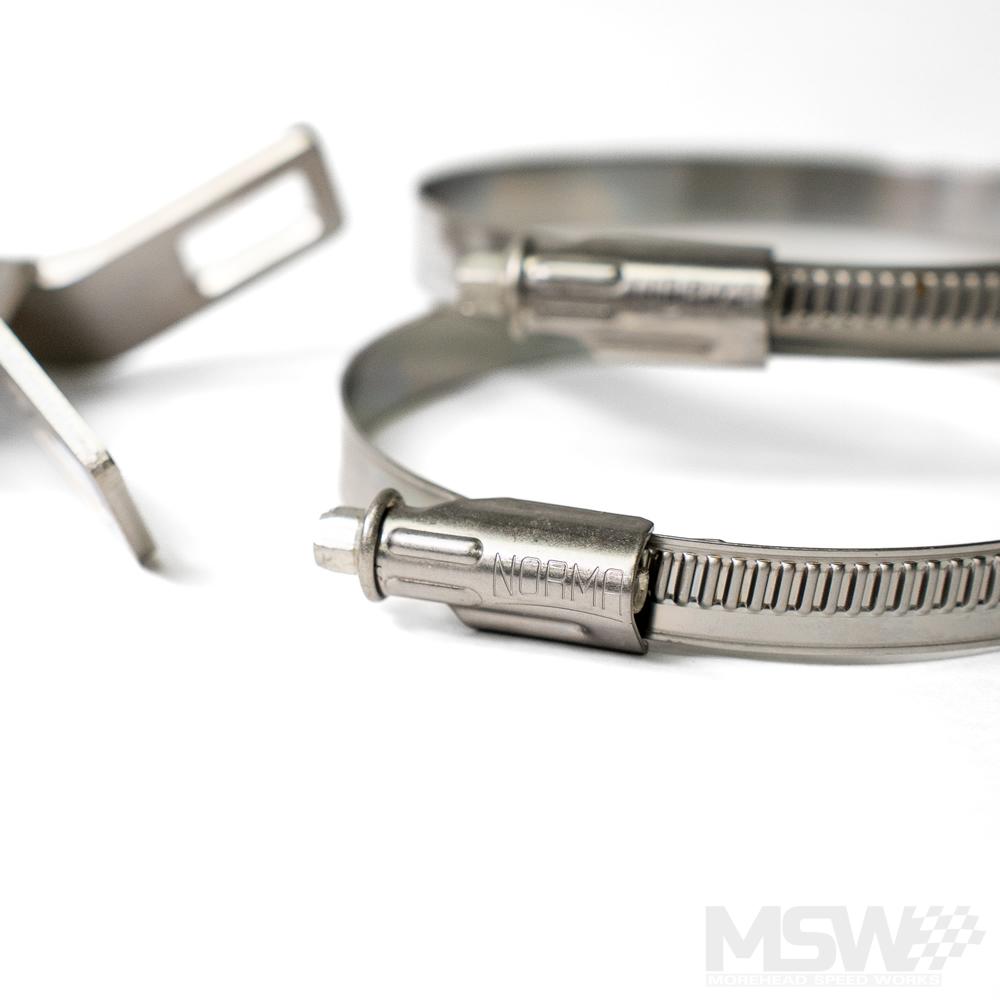

Made from stainless steel, includes two Norma stainless steel hose clamps for mounting.
Installation Notes:
When used in a non-M configuration, your stock power steering lines can be reused, some slight rerouting may be necessary.
When used in an M3 application, you will either need to lengthen your lines (they are low pressure to and from the reservoir) or use the non-M lines from a 330i.
To install, simply feed the hose clamps through the openings in the bracket and tighten around the oil filter housing and power steering reservoir. Be sure to check clearances between your hoses and the serpentine belt, as well as between the top of the reservoir cap and hood. The bracket can be moved up and down, as well as rotated with the clamps loose.
Clamp uses a 7mm hex.
| Series | Chassis | Model | Engine |
|---|---|---|---|
| Series | Chassis | Model | Engine |
| 3-Series | E46 | 323i/Ci | M52B25TU 2.5L I6 |
| 3-Series | E46 | 325i/Ci | M54B25 2.5L I6 |
| 3-Series | E46 | 328i/Ci | M52B28TU 2.8L I6 |
| 3-Series | E46 | 330i/Ci | M54B30 3.0L I6 |
| 3-Series | E46 | M3 | S54B32 3.2L I6 |
