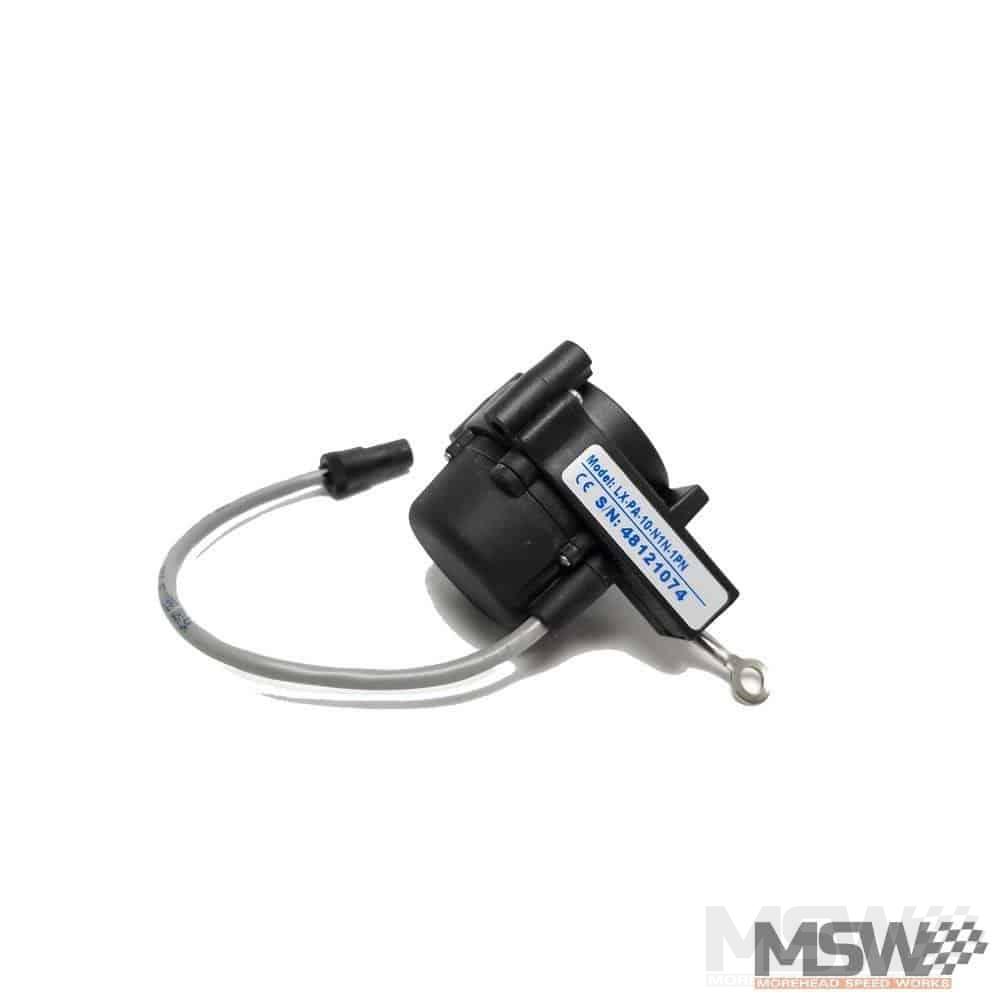

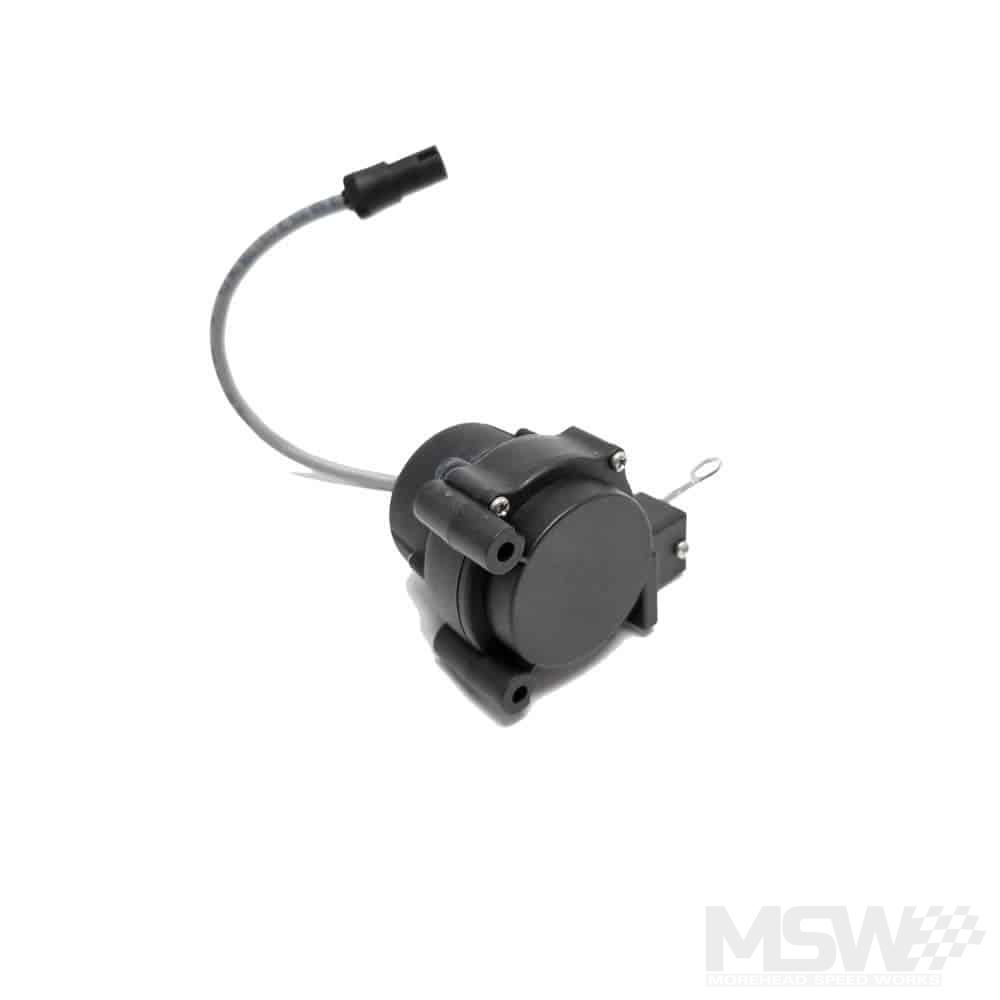

This string potentiometer has a 10″ (280mm) stroke and comes with a standard AiM 4-pin 719 connector for connecting to any analog input on your AiM Logger.
The enclosed* rotary potentiometer is activated by pulling the spring-loaded cable. The very long range allows 10 inches (250mm) of maximum travel to measure and log driver steering input. A 3/16″ (4.8mm) eyelet on the end of the cable allows easy connection using a #10 screw. The male 4-pin 719 connector plugs directly into the MXS, MXG, MXL Pista / Pro sensor harness.
For best results, ensure that the cable will not be pulled out more than 9″ (230mm) at full lock. This may prevent a minor bump to the outside front wheel from damaging the sensor due to overtravel. The standard calibration procedure lets you determine where “center” will be.
* Note: This sensor is not sealed against moisture. It must be protected against water and spray.
