AiM MXS 1.2 Dash Logger

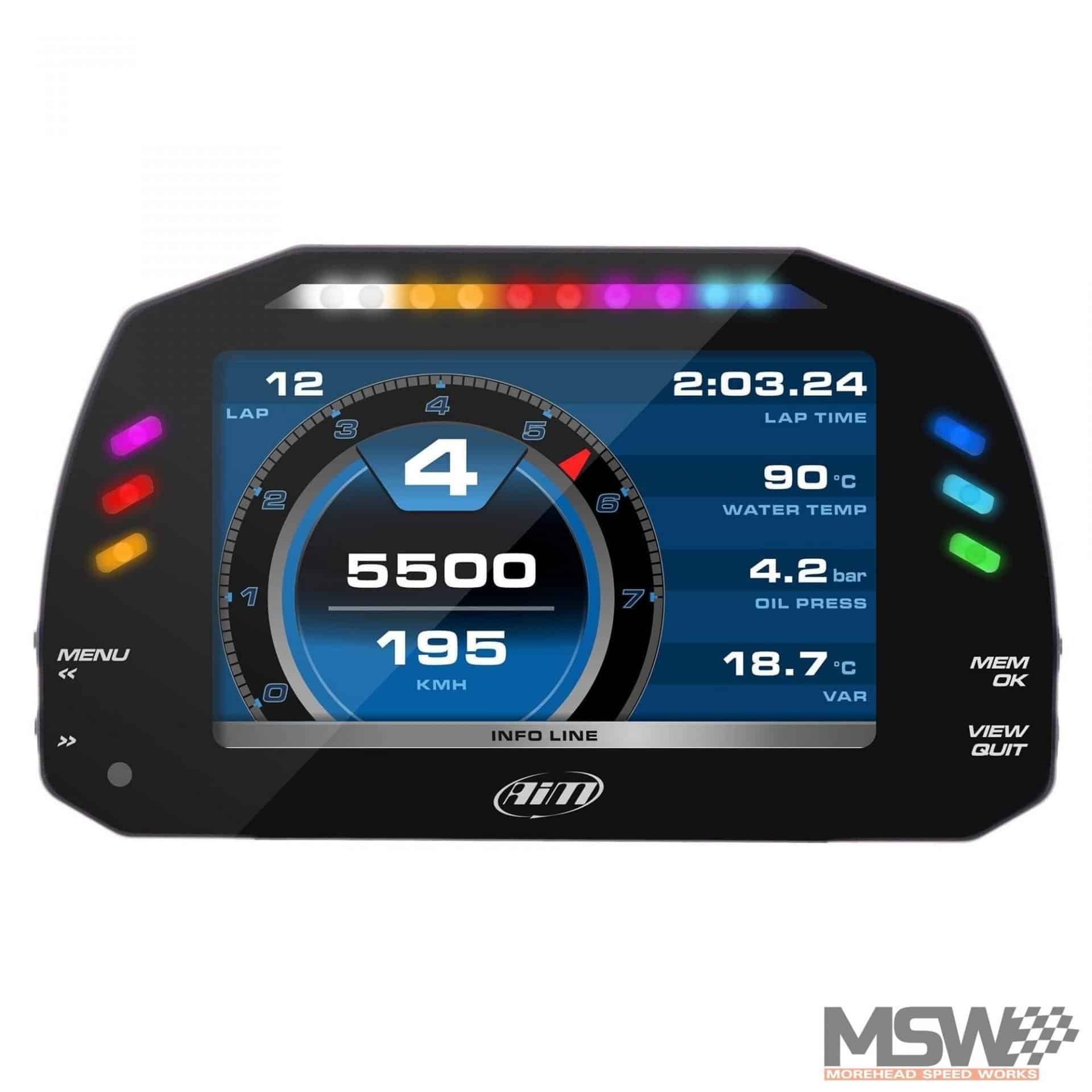

The AiM MXS data logging dash represents a huge leap forward in racing display flexibility. The brilliant 800×480 pixel (5″ diagonal) TFT display frees you from the constraints of a single, factory-designed LCD display. The MXS shows you the data you want, the way you want.

Eight analog input channels can sample, log, and display a wide range of temperatures, pressures, or potentiometers (throttle position, steering position, etc). A CAN input allows you to further expand the dash by adding an almost limitless number of AiM CAN Data Hubs (Part No. MC-329, sold separately). These hubs let you connect other inputs such as Lambda (O2), SmartyCam, or even channel expansion hubs, without using any analog channels! The MXS can also be connected to many different ECUs to log any data gathered by the ECU. An internal 3-axis g-force sensor, internal gyroscope, GPS08 module, 4 wheel speed channels, a lap time receiver input, and 2 digital outputs round out the package. It all adds up to a flexible, expandable data logger that can grow with you.

The super-compact 6.5″ x 3.8″ anodized aluminum housing is designed to fit the smallest formula car cockpit. The wide, auto-dimming display can be set by the user to a number of different full-color screen designs. You can even create up to 8 different pages, all using different screen designs. Ten configurable shift light LEDs across the top of the housing and 6 configurable alarm LEDs along the sides can all be programmed with any of 7 colors. Each alarm can be programmed with a steady or flashing LED, a custom text message on the screen, and multiple conditions (for example, oil pressure below 60 psi and engine speed above 4000 RPM… or over-rev by 200 RPM keeps the light on steady until power-off, while over-rev by 500 RPM makes the same light flash until data is downloaded… ). Two digital outputs (1 amp @ 12v) can be used to trigger external warning lights, fan relays, etc based on similar logic as the alarms. The shift lights can be programmed separately for each gear, if desired. Set them to come on sooner in low gears and closer to redline in high gears, set different colors for each gear, and more!

The 4GB non-volatile memory can store many hours of information for detailed analysis using AiM’s latest Race Studio 3 software. All of the data can be downloaded to your computer using a built-in secure Wi-Fi connection (no cable required). Requires 9 – 15V external power supply.

Kit includes MXS data logging display, wiring harness with 37 pin Deutsch connector, GPS08 module, and Race Studio 3 software. All sensors sold separately.
